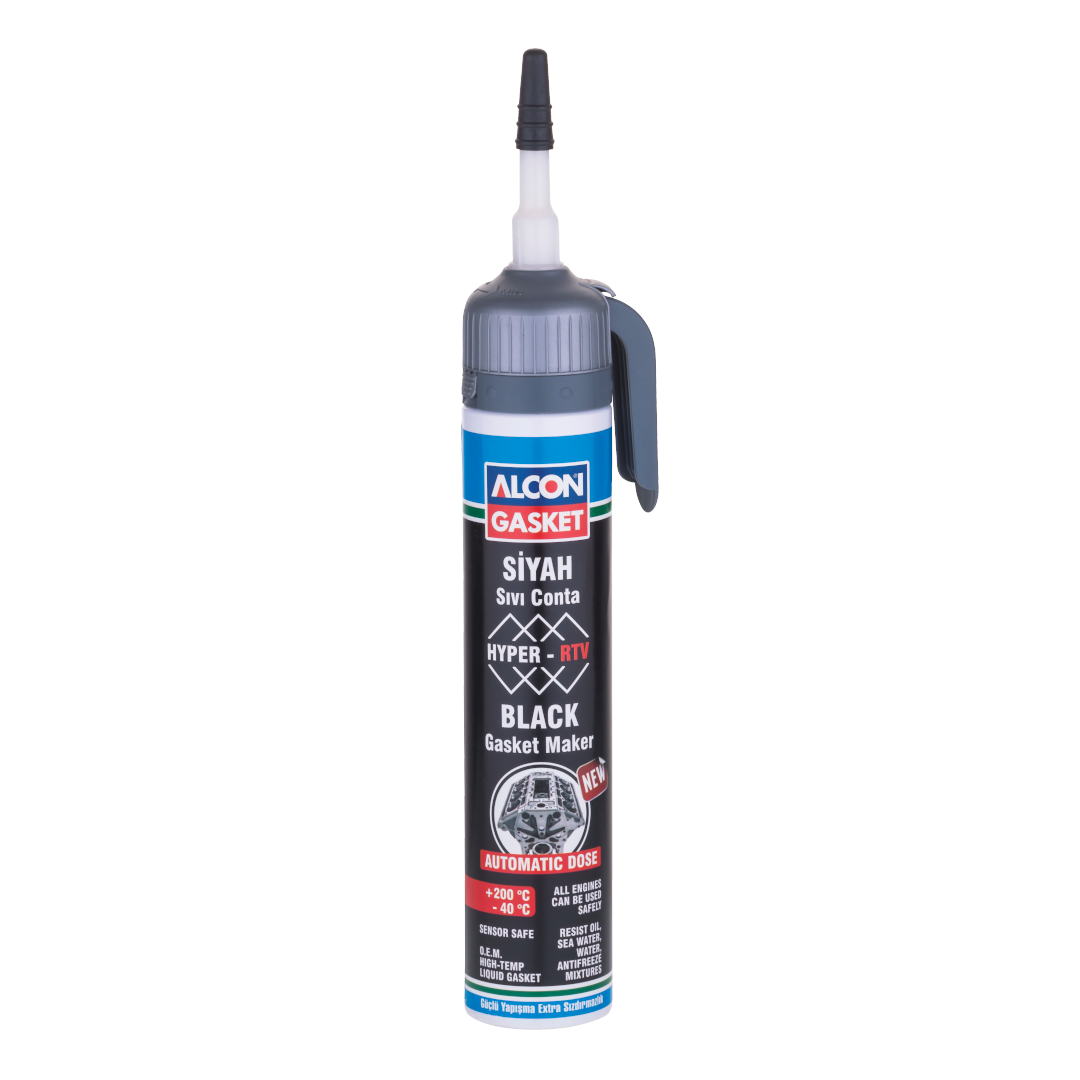

ALCON HYPER-RTV AUTOMATIC DOSE NEUTRAL LIQUID GASKET MAKER 200 ml. (MSDS)


ALCON HYPER RTV AUTOMATIC DOSE RTV LIQUID GASKET MAKER (TDS)


Neutral Oxim-based next-generation liquid sealant.

It does not emit any odor that could negatively affect sensors during curing.

Resistant to shrinkage and cracking caused by thermal cycling.

After curing, it operates between -40 °C and +300 °C.

Specially formulated to resist oily and dirty surfaces.

After curing, it is resistant to oil, antifreeze, gasoline, diesel, and seawater.

Can be removed if necessary.

Strong adhesion, coverage, continuous elasticity, and extra sealing properties.

Packaged in a new dosage automatic cartridge.

Technical Information

• Colors: Red, Black, Gray
• Curing: Neutral Oxim
• Elongation at Break: 22
• Viscosity/Appearance: Thixotropic paste
• Density: 1.05 g/cm³
• Elasticity: 450%
• Initial Surface Film Forming Time: 15 minutes (+23 °C)
• Curing Speed: 3 mm/day
• Temperature Resistance: -40 °C to +300 °C
• Extrusion Rate: 220 g/min
• Application Surface Temperature: +5 °C to +40 °C

Application Method

Surface Preparation

Dust, oil, and dirt on surfaces to be in contact with the liquid sealant must be cleaned.

If there are any residual sealant from previous applications, they should be cleaned using mechanical methods.

Application Method

Apply the liquid sealant to a single surface. Wait for 5-10 minutes, then join the parts.

For small sealing areas, the parts can be immediately joined if necessary.

Before application, open the packaging, break the safety tab, and adjust the dosage setting using the gray ring. Press the plastic pedal to release the liquid sealant. The sealant flow stops when the pedal is released. To preserve the product for the next use, close the dosage setting and the packaging cap.

Application Areas

Used for sealing all surfaces and filling corrosion gaps, including in:

• Automobiles, trucks, buses, military vehicles, ships, machinery, heating systems, industrial ovens, and chimneys.
• Sealing sensitive surfaces exposed to high temperatures or thermal cycling, where sealing is required but rubber, cork, and Klingirit seals cannot be applied.
• Sealing areas of all engines, differential covers, carburetor covers, pumps, thermostats, gear and gearbox cases, transmissions, etc., which are exposed to vibrations and heat.

Warnings

• Do not throw the full or empty packaging into fire. Keep away from sunlight and store at temperatures not exceeding +50 °C.
• Keep out of reach of children.
• Store the container in a well-ventilated area.
• Keep away from ignition sources, and do not smoke.
• Avoid contact with eyes and skin.
• In case of eye contact, rinse immediately with plenty of water and consult a doctor.
• Wear appropriate protective clothing, gloves, and eye/face protection during work.
• In case of an accident or if you feel unwell, seek medical advice immediately.
• If swallowed, seek medical advice immediately and show the container or label.
• Do not pour into the sewer system. Dispose of waste and packaging according to local hazardous or special waste disposal regulations.
