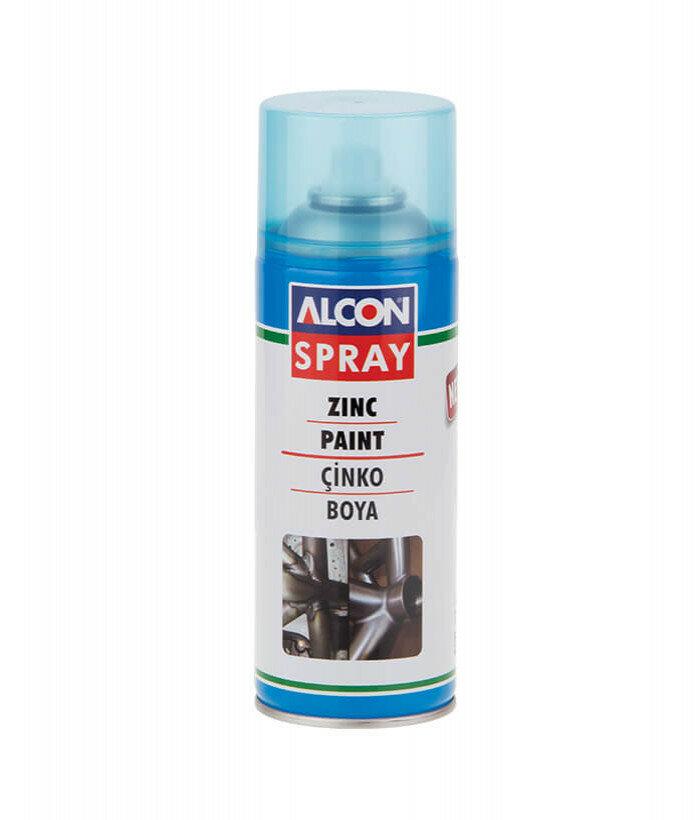

ALCON ® ZINC Spray

Provides ultra-long-lasting corrosion protection for metal parts requiring a medium-gray coating rich in permanent zinc. Ideal for components that cannot be galvanized through hot-dip processes.

Can also be used to repair the surface of damaged or restored galvanized components before welding or other mechanical operations.

Product Features

• 92% Zinc-Rich Dry Film Coating: Provides sacrificial cathodic protection to ferrous metals.
• Self-Healing Mechanism: Scratches are resealed through the formation of zinc oxides and carbonates.
• Unique Flexibility and Hardness Combination: Highly resistant to peeling, flaking, and abrasion.
• Outstanding Water Resistance: Features a tough, polymeric zinc-rich film.
• High-Performance Coating or Primer: Contains pure zinc, synthetic resin, and additives.
• Non-Toxic Formulation: Free from lead and chromates.
• Excellent Repair for Galvanized Surfaces: Adheres well to metal surfaces.

Technical Information

• Appearance: Medium Gray Dry Film Coating
• Dry to Touch: 15 minutes
• Full Cure: Approximately 24 hours
• Applied Film: Resin-Bound Micronized Zinc
• Resin Type: Epoxy Ester
• Solids (Applied Film): 92% w/w zinc
• Solvent: Hydrocarbon
• Propellant Gas: DME (Dimethyl Ether)
• Typical Film Thickness (per coat): 0.1 mm
• Coverage per Aerosol (0.1 mm, dry): 2.0 m²

Application Instructions

1. For best results, apply to a clean, oil-free, and dry surface.
2. Remove any remaining rust and scale using a wire brush or abrasive method.
   • Avoid rust removers based on phosphoric acid, as they leave an electrically insulating film that disrupts galvanic protection.
3. Clean the area to be treated with a residue-free solvent cleaner, ensuring the solvent fully evaporates before proceeding.
4. Shake the can vigorously for 2 minutes after the mixing ball begins to rattle, and shake frequently during use.
5. Hold the can upright and spray from a distance of 15-30 cm.
6. Apply light, even coats.
   • For best results, apply 2 light coats 15-20 minutes apart instead of a single heavy coat.
7. Additional layers can be applied at 15-20 minute intervals.
8. After use, clean the nozzle by inverting the can and spraying for 3-5 seconds until only propellant comes out.

• Touch Dry: 15 minutes at 20°C
• Fully Cured: Approximately 24 hours at 20°C

Application Areas

Suitable for ports, docks, marine environments, farms, and other industrial equipment:

• Steel door and window frames
• Fences, gates, garage doors
• Trailer and caravan chassis
• Couplings, inner cabin body panels
• Structural steel and guardrails
• Welded seams, drainage systems
• Boilers, storage tanks, pipes, and fittings
